Measuring Roll-up Service Door & Grille

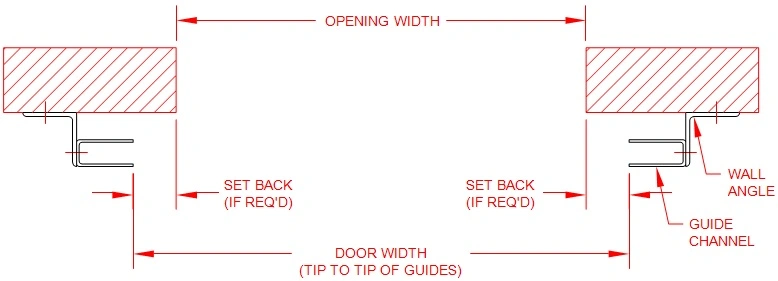

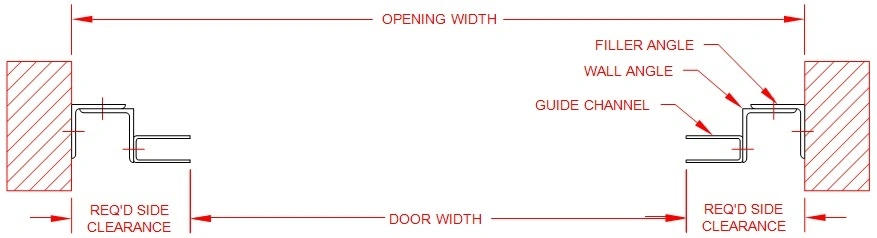

Width
*ROLL-UP DOOR IS SHOWN - GRILLE & CLOSURE ARE SIMILAR*
FACE OF WALL MOUNT

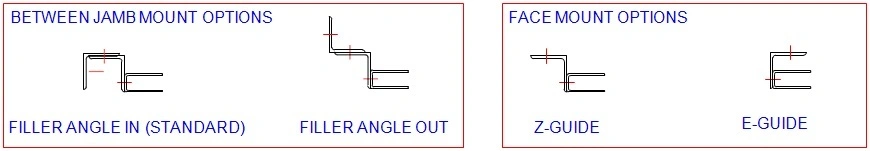

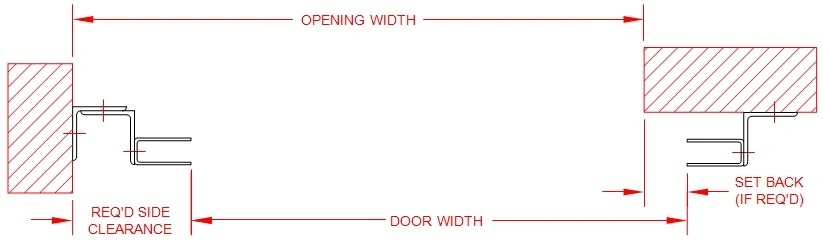

BETWEEN JAMB MOUNT

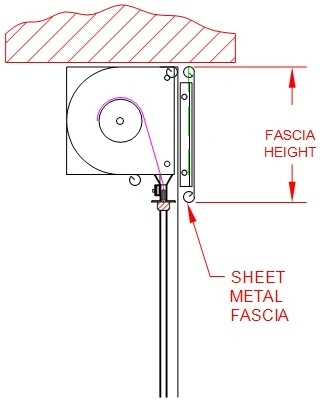

COMBINATION MOUNT

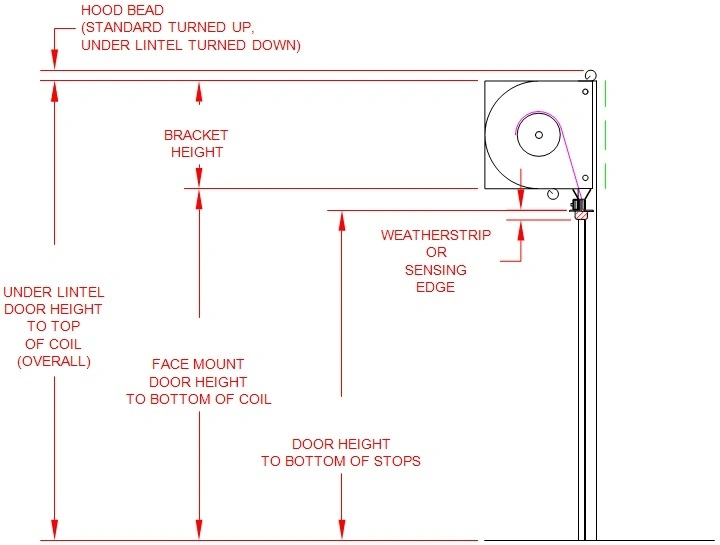

Height
*ROLL-UP DOOR IS SHOWN - GRILLE & CLOSURE ARE SIMILAR*
FACE MOUNT

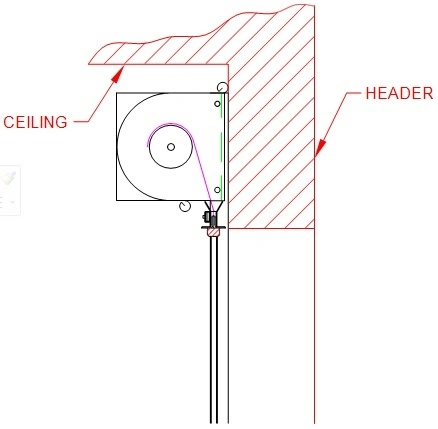

UNDER LINTEL MOUNT
Sloping Sill Condition
*ROLL-UP DOOR IS SHOWN - GRILLE IS SIMILAR*

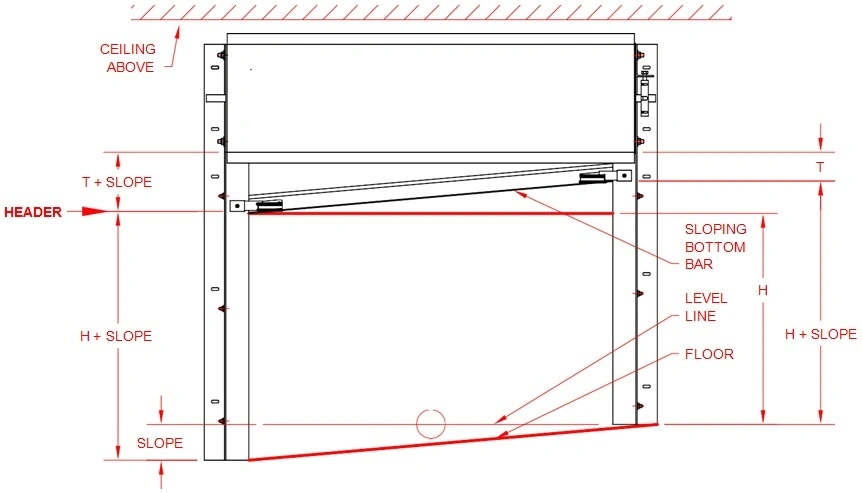

SLOPING BOTTOM BAR - CLEARS HEADER
(DOOR HEIGHT = H + SLOPE)

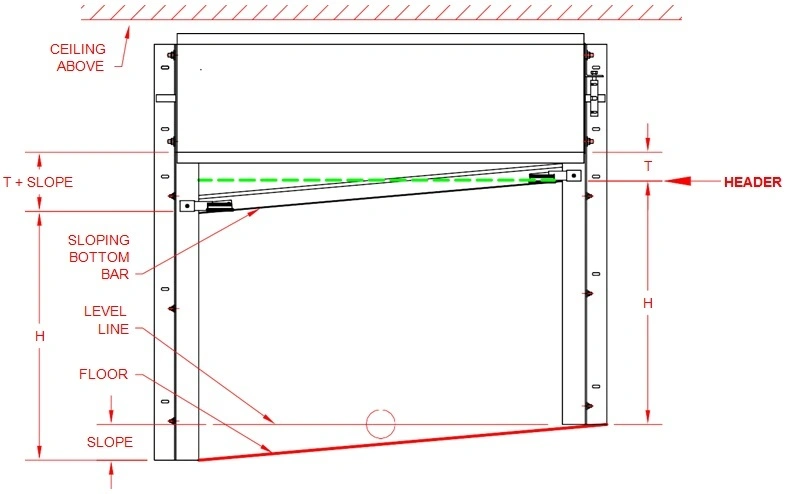

SLOPING BOTTOM BAR - EXTENDS BELOW HEADER
(DOOR HEIGHT = H)
